- [Efficient Mixing and Constant Temperature Heating] Adopting pure copper motor (60 watts) and double heating tubes (1.5 kilowatts) with T-shaped paddles to ensure even mixing and stable heating of materials and enhance the smoothness of filling.
- [Easy and Safe Operation] Temperature control, on/off switching and real-time display are integrated into the panel, making modular operation simple and intuitive; and the unit is packaged in a sturdy wooden case to ensure safe transportation.
- [Large Capacity and High Productivity] 4 gallons capacity with high efficient heating/stirring system can fill 20-45 bottles per minute, significantly improving productivity.
- [Anti-leakage and Anti-curing Design] Stainless steel spout is linked with C-type heating tube and ball valve to realize constant temperature and flow control throughout the process, avoiding leakage and material solidification problems.
- [Wide Applicability] The heating layer supports a wide temperature range from 90°C for water to 300°C for thermal oil, adapting to liquids and creams of different consistencies to meet diversified commercial needs.
Application
It is used for dissolving and filling creams and liquids in daily chemical, food, and pharmaceutical fields such as lipstick, shoe polish, ointment, petroleum jelly, wax products, perfume, honey, edible oil, juice, beer, beverage, and skin care water.
Specification
Model: YK-15L
Application: Liquid, Paste
Material: 304Stainless Steel, Copper
Process: Automatic Argon Arc Welding. Polishing
Color: Silver
Assembly Required: Yes
Filling Mode: Manual
Power Sources: Electric Corded
Voltage: 110V 60HZ
Plug: US Standard
Capacity: 15L/4gal
Heating Power: 1.5kw(2*0.75kw)
Stirring Power: 60w
Stirring Motor Max. Speed: 36rpm
Power Supply: 2.1kw
Outlet Heating Power: 120w
Certificate: CE
Filling Accuracy: ±1%(Specific Accuracy is Controlled Manually)
Adjustable Temperature: 0-300℃/32-572℉
Filling Speed: 20-45 Bottle/min(Depends on Actual Personal Degree of Operation Proficiency)
Gross Weight: 22kg/48.5lbs
Net Weight: 20kg/44lbs
Package Size: 55*52*40cm/21.7*20.5*15.7in
Product Size: 53*39*70cm/20.87*15.35*27.56in
Bucket Wall Thickness: 2mm/0.08in
Package Included

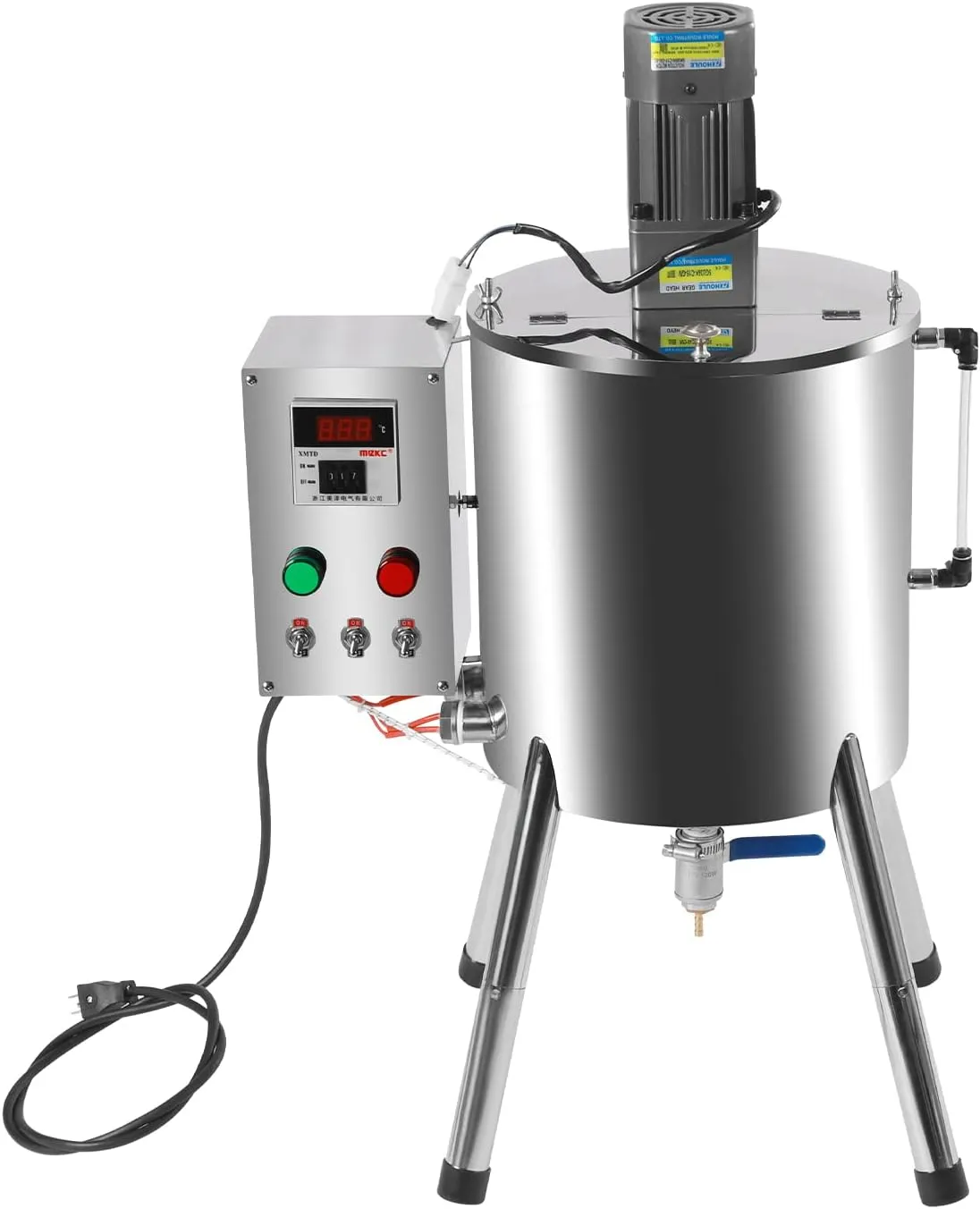

1*Lipstick-filling Machine
1*Stirrer
4*Support Pillars
1*English User Manual
All Accessories Needed for Use
