- High-quality Material: Corrosion and heat-resistant high-quality 304 stainless steel plate (thickness 0.08 inch) will not react with the material, ensuring the purity of filling while providing excellent durability. Professional automatic argon arc welding process to create seamless and dense welded joints
- Uniform Stirring & Heating: Powerful pure copper motor (max. speed 36rpm, power 60 watts), T-shaped paddle, and double industrial grade heating tubes (0.75kw*2) provide uniform and efficient stirring and heating for the material, which makes the filling more smooth and efficient
- Wide Applications: The heating layer can reach 90℃ with water, and the highest heating temperature can reach 300℃ with heat-conducting oil, which allows it to be applied to different materials to meet commercial needs
- Anti-leakage & Curing: Stainless steel discharge nozzle with a C-shaped heating tube and ball valve control realizes constant temperature heating and manual control of discharge throughout the process, which can effectively prevent leakage and curing
- High Efficiency: 4 gallons capacity, excellent heating (1.5kw), and stirring (60w) nature easily achieves efficient filling of 20-45 bottles per minute, which will greatly save time and effort
- Easy to Operate: The panel with temperature control, indicator light, valve heating switch, stirring switch, chamber heating switch, and temperature display allows you easily and orderly control different modules to achieve efficient filling
Details
Stabilizing Support Pillars: Four support pillars with non-slip sleeves at the bottom provide stable support to prevent the product from slipping.
Removable Lid: The lid has screws for easy removal and installation. The handle facilitates opening and closing the lid.
Level Gauge: The mezzanine is equipped with a level gauge for easy observation of water/oil levels.
Copper Valves: Corrision-resistant copper valves are sturdy. The user-friendly valve handle makes operation easier and more accurate.
Heat Dissipation Holes: Multiple heat dissipation holes of the motor can dissipate heat in time to prolong the service life.
Application

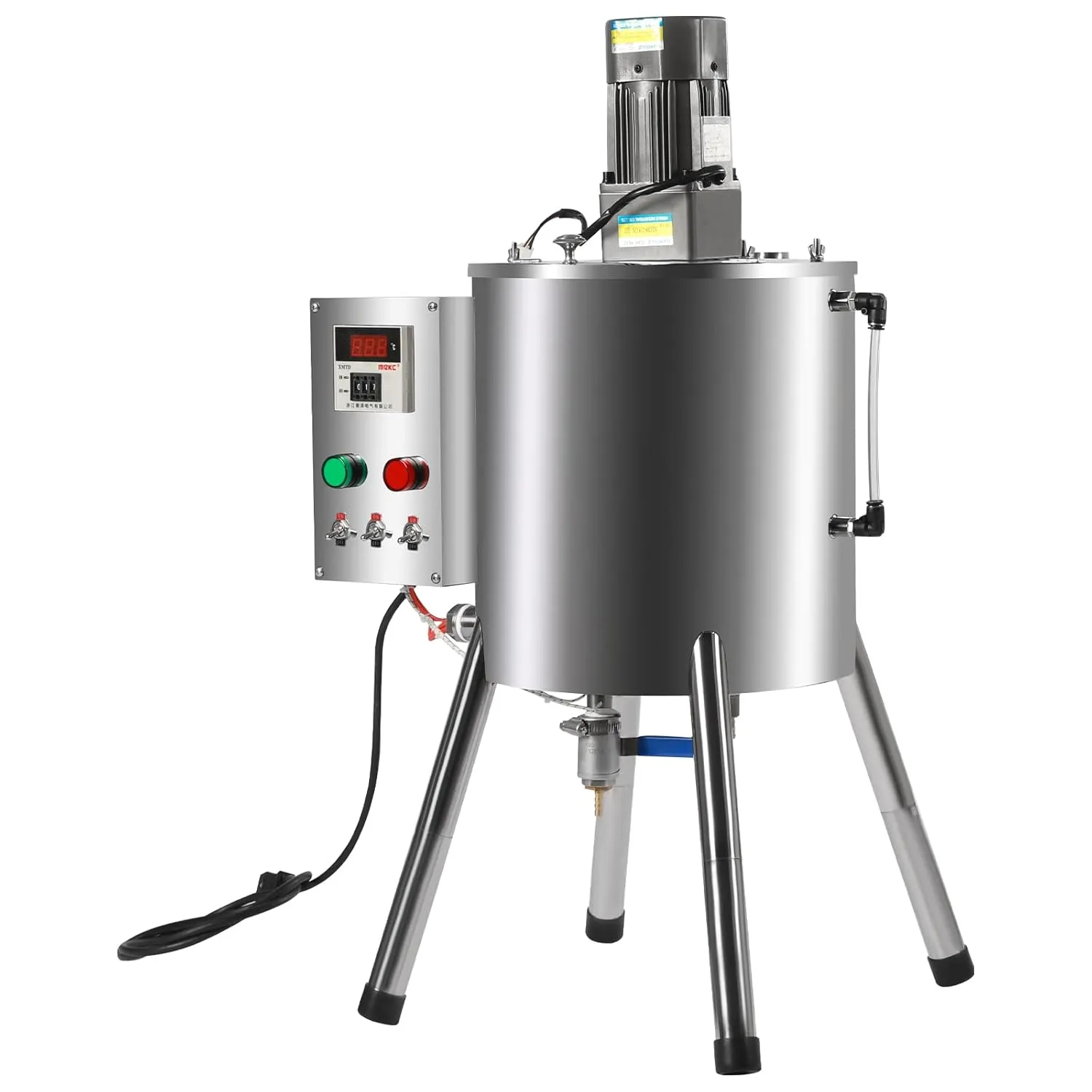

This heating mixing filling machine is used for dissolving and filling creams and liquids in daily chemical, food, and pharmaceutical fields such as lipstick, shoe polish, ointment, petroleum jelly, wax products, perfume, honey, edible oil, juice, beer, beverage, and skin care water.
Specification
Model: YK-15L
Application: Liquid, Paste
Material: 304Stainless Steel, Copper
Process: Automatic Argon Arc Welding. Polishing
Color: Silver
Assembly Required: Yes
Filling Mode: Manual
Power Sources: Electric Corded
Voltage: 110V 60HZ
Plug: US Standard
Capacity: 15L/4gal
Heating Power: 1.5kw(2*0.75kw)
Stirring Power: 60w
Stirring Motor Max. Speed: 36rpm
Power Supply: 2.1kw
Outlet Heating Power: 120w
Certificate: CE
Filling Accuracy: ±1%(Specific Accuracy is Controlled Manually)
Adjustable Temperature: 0-300℃/32-572℉
Filling Speed: 20-45 Bottle/min(Depends on Actual Personal Degree of Operation Proficiency)
Gross Weight: 22kg/48.5lbs
Net Weight: 20kg/44lbs
Package Size: 55*52*40cm/21.7*20.5*15.7in
Product Size: 53*39*70cm/20.87*15.35*27.56in
Bucket Wall Thickness: 2mm/0.08in
Package Included
1*Lipstick-filling Machine
1*Stirrer
4*Support Pillars
1*English User Manual
All Accessories Needed for Use
- Item Weight : 44 Pounds
- Date First Available : March 15, 2025
- Manufacturer : Ringmaster
- Country of Origin : China
